M9重型伺服激光封边机

信息来源：济南品脉数控设备有限公司 文章作者： 发布时间：2026-08-15 15:59:58 点击量：

伺服控制，激光封边，细节尽显卓越
Servo control, laser edge sealing, every detail showcases excellence

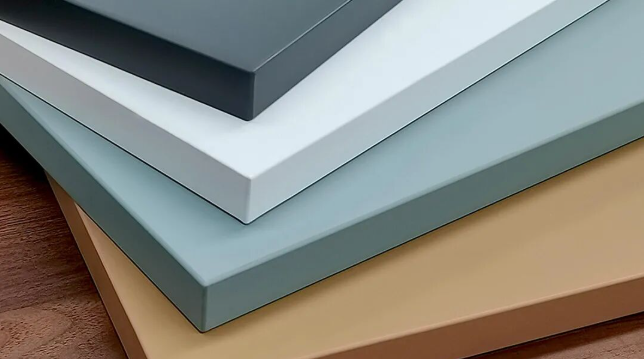

伺服电机精准控制，激光无缝封边，0.1mm精准贴合，99.9%完美覆盖，细节尽显卓越品质。
Servo motor for precise control, laser for seamless edge sealing, 0.1mm precise fitting, 99.9% perfect coverage, every detail showcases the outstanding quality.

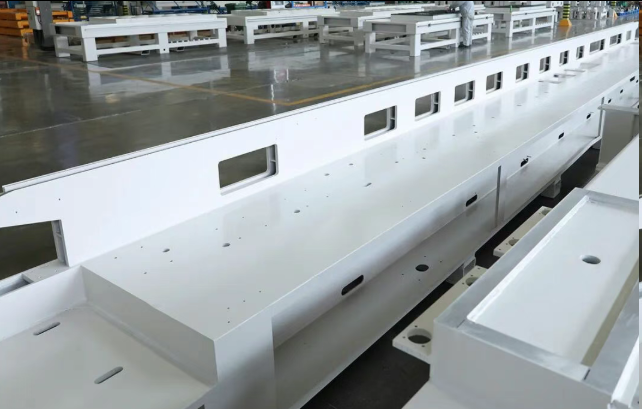

重型钢轨一体式床身结构
Heavy-duty steel rail integrated bed structure
采用加厚钢板焊接，退火去应力处理，大型龙门精铣加工。一体式钢结构导轨，厚度达2公分以上，设备高速运行更平稳。
Using thickened steel plate welding, annealing stress treatment, large gantry finishing milling. Integrated steel structure guide rail, thickness of more than 2 cm, equipment high-speed operation more stable.

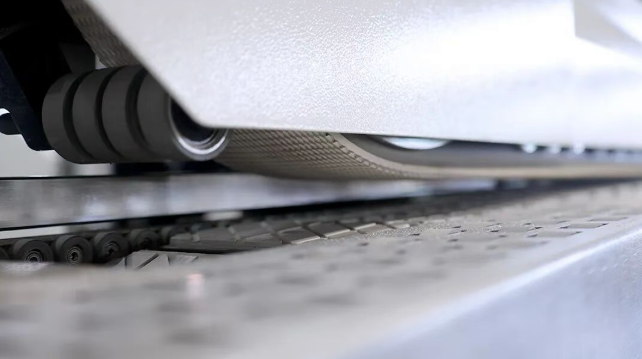

钢制履带压料结构
Steel track press construction
高强度高铝梁压梁结构，高耐磨高柔性履带，最大程度保证板材输送稳定性和各封边工序高精度配合。
High strength steel compression beam structure, high wear-resistant and flexible track, to ensure the maximum stability of plate transportation and each edge sealing process with high precision.

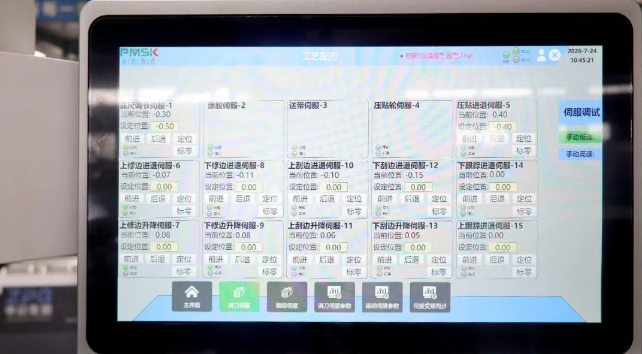

智控控制系统，触屏操控，快速调节

Intelligent control system, touchscreen operation, quick adjustment

系统稳定性高，可视化界面，触屏操作，所有功能均可快速调节。

The system has high stability, a visual interface, touchscreen operation, and all functions can be adjusted quickly.

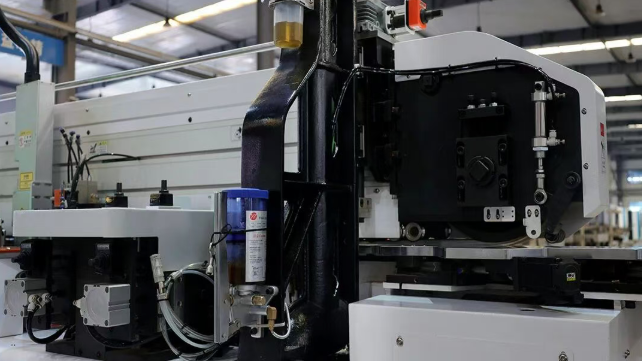

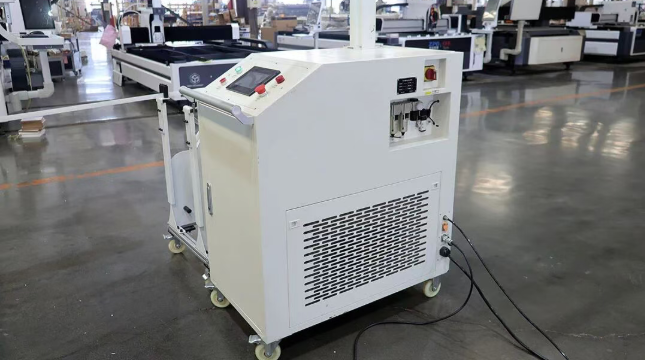

高品质激光装置

High quality laser device

采用高功率，高精度，高稳定性激光器，运行高速稳定，封边品质卓越。

Using high power, high precision, high stability laser, running high speed and stability, edge sealing quality is excellent.

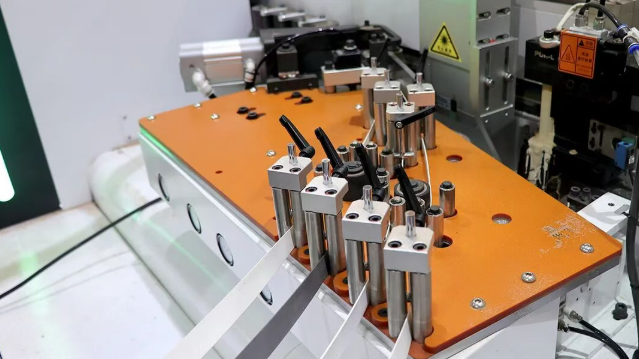

多通道伺服送带

Multi-channel servo conveyor belt

快速切换封边带颜色，伺服送带，保证封边带精准稳定传送。

Quickly switch the color of the edge banding, and use the servo to feed the banding, ensuring its precise and stable transmission.

重型铸铁支撑立柱

Heavy cast iron support columns

重型铸铁立柱，融合高强度力学设计，承重能力强，稳定性好，恒久保持封边性能。

Heavy-duty cast iron columns, integrating high-strength mechanical design, have strong load-bearing capacity, excellent stability, and can consistently maintain the edge sealing performance.

机型/Models	PE-M9
封边带厚度 Edge tape thickness	0.4~3mm
封边带宽度 Edge tape width	12~65mm
板料厚度 Panel thickness	10~60mm
板材宽度 Panel width	≥60mm
送料速度 Feeding speed	0~26m/min
工作气压 Working air pressure	≧ 0.7Mpa
总功率 Total power	25KW
吸尘口径 Dust pipe diameter	φ100mm×4
重量 Equipment weight	6000Kg
外形尺寸 Overall size	10500×1050×1850mm
