| 机型/Models | PE-2C7J |
|---|---|
|
封边带厚度 Edge tape thickness |
0.4~3mm |
|
封边带宽度 Edge tape width |
12~55mm |
|
板料厚度 Panel thickness |
10~50mm |
|
板材宽度 Panel width |
≥60mm |
|
送料速度 Feeding speed |
13~18m/min |
|
工作气压 Working air pressure |
≧ 0.7Mpa |
|
总功率 Total power |
12KW |
|
吸尘口径 Dust pipe diameter |
φ100mm×5 |
|
重量 Equipment weight |
1250Kg |
|

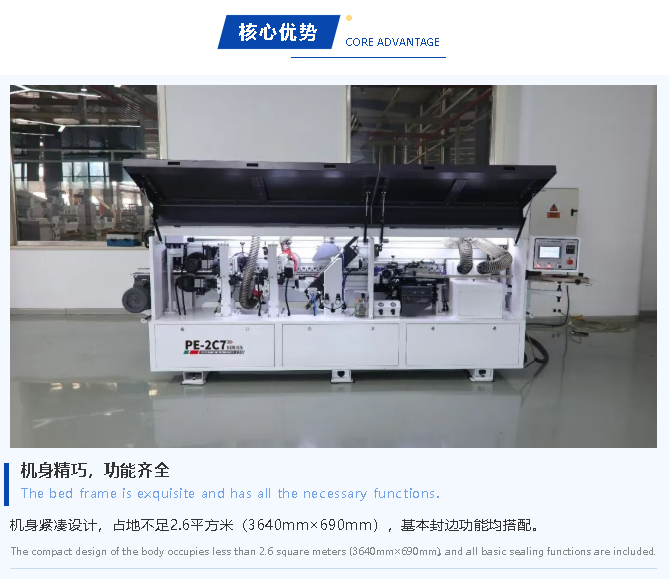

外形尺寸 Overall size |
3640×690×1240mm |
